Observer 패턴

Observer Pattern

notify multiple objects about any events that happen to the object they're observing
refactoring guru
head first design patterns 서적

UML

• Publisher
  • subscribers 리스트를 갖고 있고, subscribe() / unsubscribe() 메서드를 통해 관리
  • 상태가 변경되면 subscribers 각각에 대해 변경된 상태를 알려주는 notifySubscribers() 메서드를 가짐
• Subscriber
  • Subscriber interface는 Publisher가 notifySubscribers() 메서드에서 호출할 update() 메서드를 선언
• ConcreteSubscribers
  • Subscriber interface의 update() 메서드를 구현
  • Publisher는 Subscriber interface만을 바라보고 있기 때문에 Concrete Subscribers와의 연결이 느슨해짐

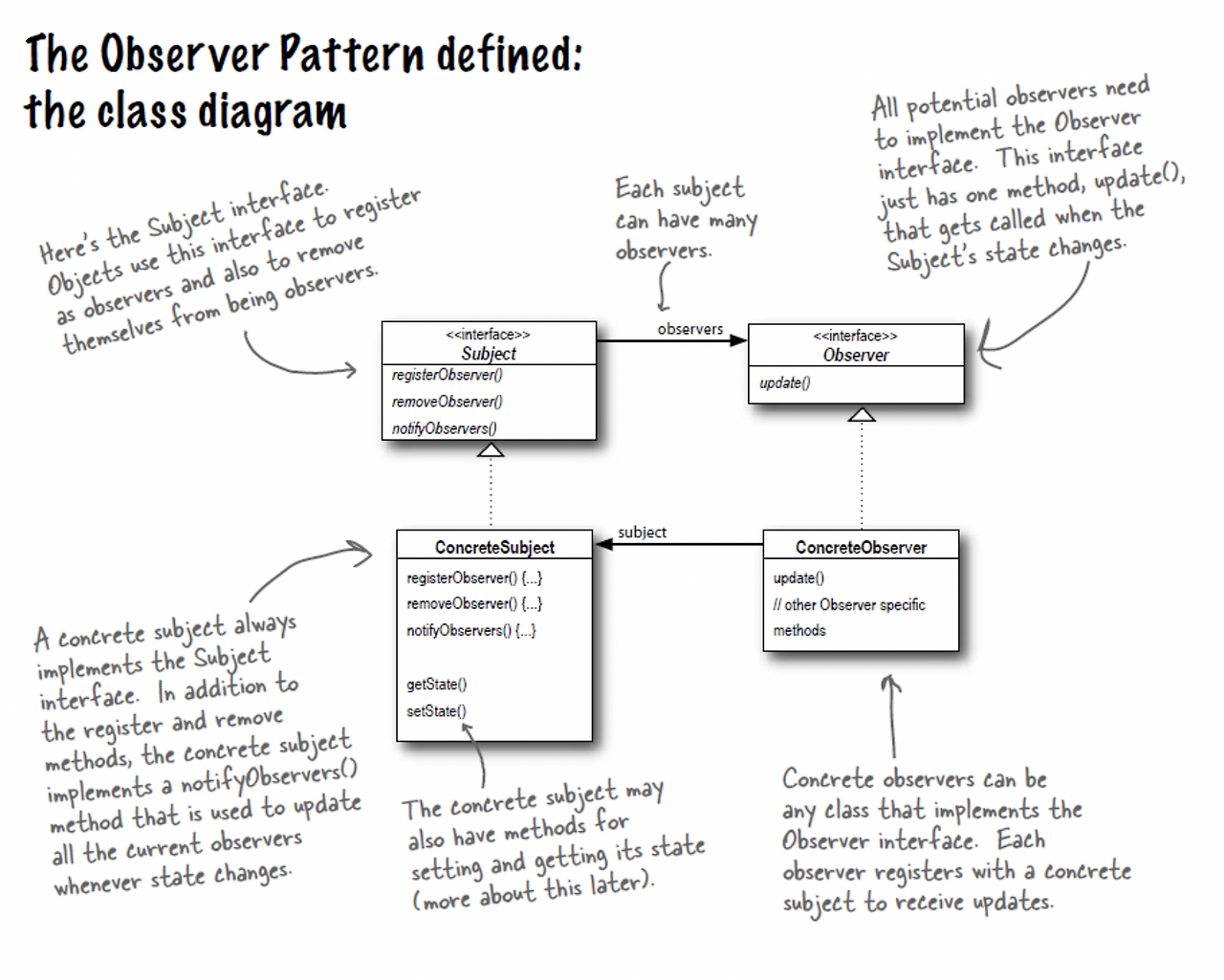

• Subject - Publisher / Observer - Subscriber에 대응
• 위 UML과의 차이점
  • Subject interface 를 추가적으로 두어 구체 Subject가 다형적으로 변할 수 있게 함
  • 상태를 설정하고 알아내기 위한 state getter/setter 메서드가 있을 수도 있음
• 코드

// main
public class ObserverApplication {
    public static void main(String[] args) {
        WeatherData weatherData = new WeatherData();
        CurrentConditions currentConditions = new CurrentConditions();

        weatherData.registerObserver(currentConditions);
        weatherData.setMeasurements(80, 65, 30.4f);
    }
}

// Subject & ConcreteSubject
public interface Subject {
    void registerObserver(Observer o);
    void removeObserver(Observer o);
    void notifyObservers();
}

public class WeatherData implements Subject {

    private List<Observer> observers;
    private float temperature;
    private float humidity;
    private float pressure;

    public WeatherData() {
        this.observers = new ArrayList<Observer>();
    }

    @Override
    public void registerObserver(Observer o) {
        observers.add(o);
    }

    @Override
    public void removeObserver(Observer o) {
        int idx = observers.indexOf(o);
        if (idx >= 0) {
            observers.remove(idx);
        }
    }

    @Override
    public void notifyObservers() {
        for (Observer observer : observers) {
            observer.update(temperature, humidity, pressure);
        }
    }

    public void measurementsChanged() {
        notifyObservers();
    }

    public void setMeasurements(float temperature, float humidity, float pressure) {
        this.temperature = temperature;
        this.humidity = humidity;
        this.pressure = pressure;
        measurementsChanged();
    }
}


// Observer & ConcreteObserver
public interface Observer {
    void update(float temp, float humidity, float pressure);
}

public class CurrentConditions implements Observer {

    private float temperature;
    private float humidity;
    private float pressure;

    @Override
    public void update(float temp, float humidity, float pressure) {
        this.temperature = temp;
        this.humidity = humidity;
        this.pressure = pressure;
        display();
    }

    public void display() {
        System.out.println("Current conditions: " + temperature + ", " + humidity + ", " + pressure);
    }
}

Pros and Cons

• Pros
  • Open/Closed Principle. You can introduce new subscriber classes without having to change the publisher's code (and vice versa if there's a publisher interface).
  • You can establish relations between objects at runtime.
• Cons
  • Subscribers are notfied in random order.



자바 내장 Observer deprecated

java.util.Observer, java.util.Observable

• This class and the Observer interface have been deprecated. The event model supported by Observer and Observable is quite limited, the order of notifications delivered by Observable is unspecified, and state changes are not in one-for-one correspondence with notifications. For a richer event model, consider using the java.beans package. For reliable and ordered messaging among threads, consider using one of the concurrent data structures in the java.util.concurrent package. For reactive streams style programming, see the Flow API.
